Muse gadgets / Espressif ESP32-S3-DevKitC-1 (N8R8)
Status screenOfficially supportedESP32 SDK

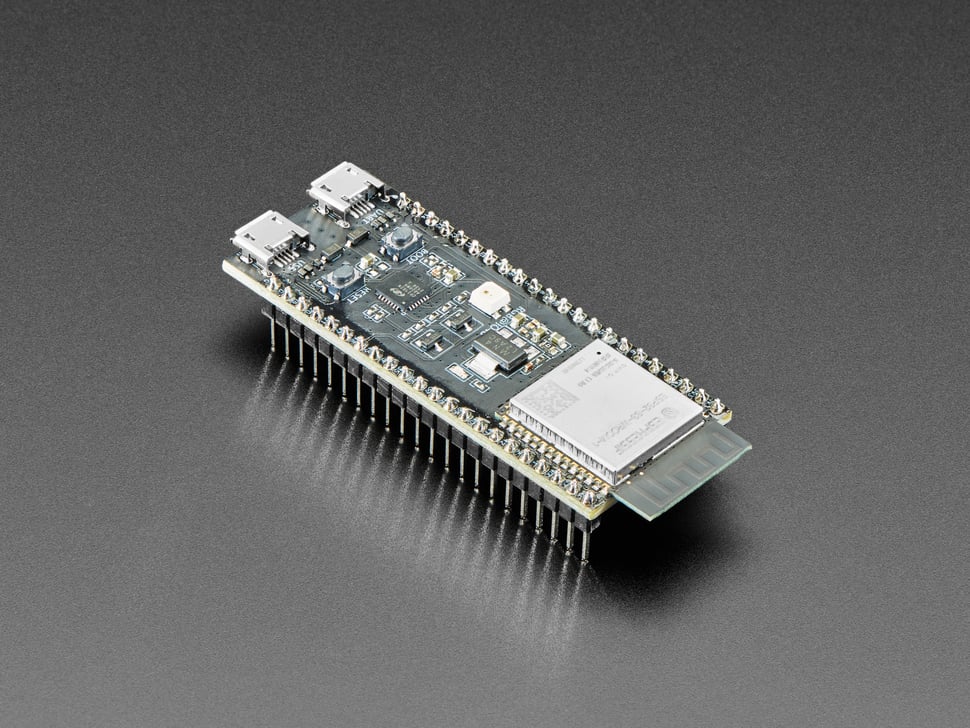

Espressif ESP32-S3-DevKitC-1 (N8R8)
Board $20 · about $23 with cable/parts
Beginner · no toolsA micro-USB data cable and one flash command. No backup or workaround.
ESP32-S3 dev board with 8 MB flash and 8 MB PSRAM. Muse shows status on its RGB light, uses the BOOT button and gets the home-network tunnel. No screen or audio. Micro-USB ports. Adafruit listed it at $19.95 (out of stock) on 2026-10-05.
What it can do
- Voiceno
- Imagesno
- Touchscreenno
- Camerano
- Air sensorsno
- Home-network tunnelyes
- Batteryno
- Over-the-air updatesno
Things to say to it
“What devices on my home network can you reach?”“Blink the gadget's light when my build finishes.”
What you need
Developer details · build command and SDK notes
Your coding agent runs this for you. The full sequence (token, flash, pair) is on the build page.
tools/board.sh espressif-s3-devkitc-1 buildLimits
Good to know
- The home-network tunnel lets Muse reach devices on your LAN that expose a local HTTP API. Treat it like giving the agent a foothold on your network.
- Pairing has no manufacturer verification and can't prevent an active man-in-the-middle attack.
- Builds are signed with the included development key and never enable Secure Boot. Enable NVS encryption (CONFIG_HOMEHUB_NVS_ENCRYPTION).
- Custom ESP32 commands are not a documented API yet: the command set (display.draw_url, sensors.read, camera.capture, ...) is hardcoded in main/app.c.
