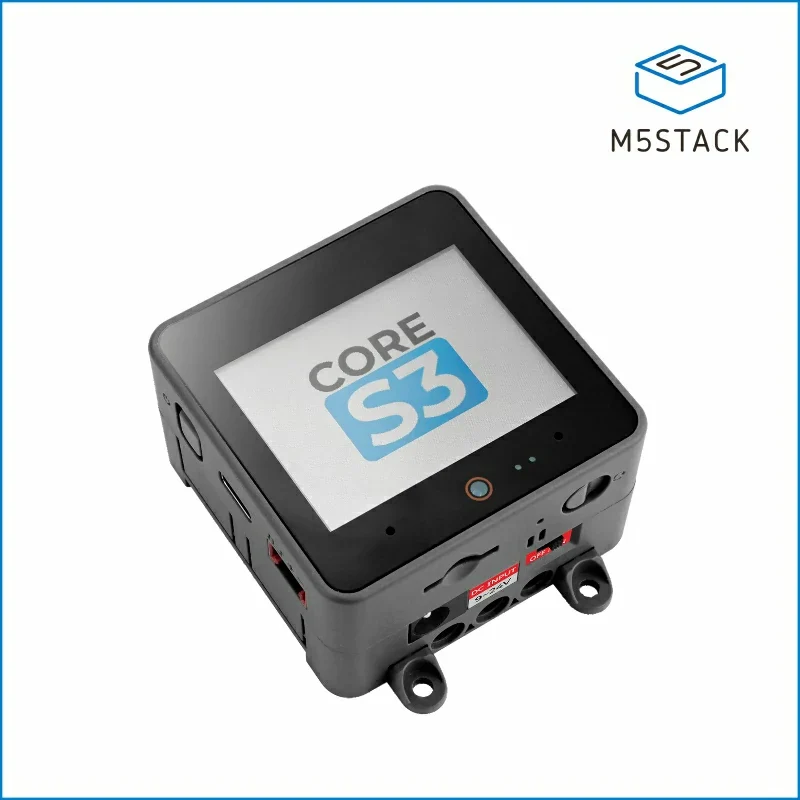

M5Stack CoreS3
Board $60 · about $70 with cable/parts
Beginner · no toolsA USB-C data cable and one flash command over its own USB.
ESP32-S3 core with a 2" 320x240 touch LCD, 16 MB flash, 8 MB PSRAM, 1 W speaker and mics. Full Muse UI: PWR is push-to-talk and pairing, settings on the touch screen. The camera, IMU and SD card aren't used yet. M5Stack listed it at $59.90 on 2026-10-05.
What it can do
- Voice · Voice in, text repliesyes
- Images · Coloryes
- Touchscreenyes
- Camerano
- Air sensorsno
- Home-network tunnelyes
- Batteryyes
- Over-the-air updatesyes
Things to say to it
“(Press PWR) What's on my calendar tomorrow?”“Show me the image you just found.”
What you need
Developer details · build command and SDK notes
Your coding agent runs this for you. The full sequence (token, flash, pair) is on the build page.
tools/muse/board.sh build cores3Limits
Good to know
- The home-network tunnel lets Muse reach devices on your LAN that expose a local HTTP API. Treat it like giving the agent a foothold on your network.
- Pairing has no manufacturer verification and can't prevent an active man-in-the-middle attack.
- Builds are signed with the included development key and never enable Secure Boot. Enable NVS encryption (CONFIG_HOMEHUB_NVS_ENCRYPTION).
- Custom ESP32 commands are not a documented API yet: the command set (display.draw_url, sensors.read, camera.capture, ...) is hardcoded in main/app.c.
